Display Control

Do you have an RF system but want more control of your devices without running expensive Ethernet or control cable? Now you can with the Contemporary Research Display Express Control System. This system allows for a control signal to be sent between the 4 and 5 channels and carried with the rest of the channels without interfering. Three main components are used to achieve this: SSV-DX Display Express PC or PC with Display Express SW-DX software installed, ICC-HE or ICE-HE-DXL Head End, and RF Controllers. Display Express Software operates, defines, and schedules display control using web-based software.

Items: 1 - 8 of 8

Contemporary Research

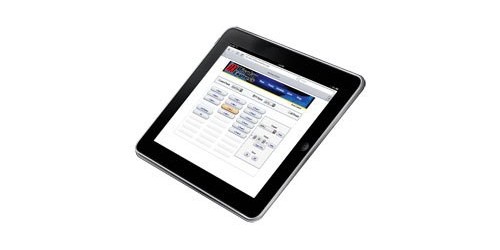

SW-DX
Free updates

Password-protected access for user and administrative access

Browser-based ASP.NET software accessible via IE7, Google Chrome, Firefox, Opera, and Safari

Dynamic or static IP address

Communicates to Contemporary Research Head Ends (ICC-HE or ICE-HE) via RS-232 or Ethernet
Your Price: $1,940.00

Coupon Available!
Contemporary Research
SSV-DX
Size: 19" W x 1.7" H (1RU) x 14" D

Weight: 10 lbs

Enclosure: Steel with black powder coat paint

Mounting: Rack mounting, 1 RU

Processing: Intel Celeron N 3050, 2G MB DDR SRAM or better

OS: Windows 7 Pro
Your Price: $3,266.00

Coupon Available!
Contemporary Research

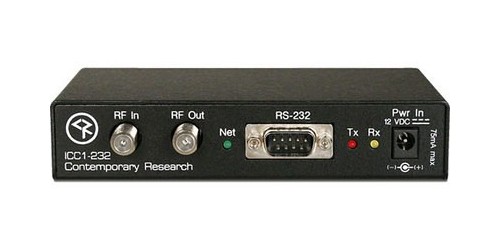

ICC1-232
Front Panel:

RF In: 'F', female, 75 ohm impedance, RF from CATV system, iCC-Net control

RF Out: 'F', female, 75 ohm impedance, RF to TV

Low-loss internal tap - less than -1.5 dbmV loss

Net LED: Green LED for iC-Net bus and DC power, flashes once per second if active

RS-232: DB-9 male connector, baud rates from 1200 to 115,000 baud
Your Price: $300.00

Coupon Available!
Contemporary Research
ICC1-IRX
Front Panel:

RF In: 'F', female, 75 ohm impedance, RF from CATV system, iCC-Net control

RF Out: 'F', female, 75 ohm impedance, RF to TV

Low-loss internal tap - less than -1.5 dB loss

Net LED: Green LED for iC-Net bus and DC power, flashes once per second if active

IR Out: 3.5mm jack for CC-IRE IR Emitter cable
Your Price: $300.00

Coupon Available!
Contemporary Research
ICE-HE-DXL
Front Panel:

Display: Text Display, white text on blue LCD

Control Buttons: Setup, Select and Up, Down, Left, Right buttons

Mini USB Port: Firmware updates

Back Panel:

Control Connections
Your Price: $1,313.00

Coupon Available!
Contemporary Research

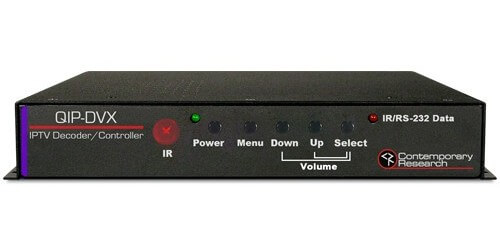

QIP-DVX
Front Panel: IR: IR Sensor / Status: Red/green status LED / Control: Five button control

Back Panel: Service: USB-A port (internal use)

HDMI: Type A, 4K/HD video and digital audio

SPDIF: Optical digital audio output

Audio: 3.5mm stereo jack

RS-232: 3.5mm TRS jack for display control (T Tx R Rx S GND)
Your Price: $557.00

Coupon Available!
Contemporary Research

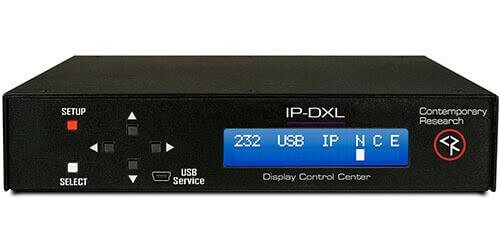

IP-DXL
Front Panel Features:

Display: Text Display, white text on blue LCD

Control Buttons: SETUP, SELECT, and Up/Down/Left/Right arrows

USB: Mini-B USB Port

Back Panel Features:

Control Connections: Ports can operate simultaneously
Your Price: $895.00

Coupon Available!
Contemporary Research

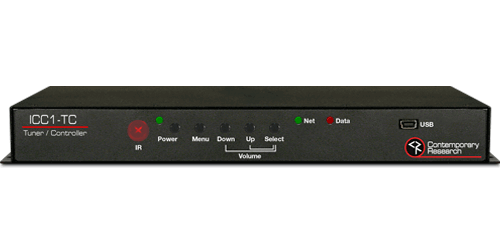

ICC1-TC
Video: MPEG-2 (480i, 480p, 720p, 1080i), H.264 (480i, 480p, 720p, 1080i, 1080p)

Audio: AC-3, MPEG-1 Layer 2, AAC

DTV Resolution: ATSC/QAM 1080i/720p/480p/480i

Tuning: Off-air 2-69 (NTSC and 8-VSB) and CATV 2-135 (NTSC, 64QAM, 256QAM, 8-VSB)

Aspect Ratio: 4:3/16:9 (Digital), 4:3, 16:9, Zoom (SD channels)

Captioning: DTV and analog, set by program or customized for size, font and display attributes
Your Price: $849.00

Coupon Available!

Items: 1 - 8 of 8
