Contemporary Research ICC2-ATSC 4S
HDTV Tuner and Controller - Networks HD Monitors / Projectors

Manufacturer SKU: 5112-001
0 reviews
 We're sorry, this product is discontinued
Our suggested Replacement:
Contemporary Research HD2-RC IR Remote for Contemporary Research Tuners


  • Product Details
  • Specifications
  • Downloads (2)
  • Reviews (0)
  • Q&A (0)

The ICC2-ATSC 4S HDTV Tuner is an integrated HDTV Tuner/Controller that networks HD monitors and projectors in a Display Express TV control system. Housed in a new, smaller enclosure, the unit fits into a standard 1RU rack space for easier mounting on a TV or in a 19” rack.

As a universal TV tuner, the ICC2-ATSC 4S can receive ATSC, NTSC, and clear QAM cable channels, able to decode MPEG-2 and MPEG-4 video. The tuner displays broadcasts through simultaneous HDMI, RGB/Component, and NTSC composite video ports. Full-time audio is available from digital AC-3 HDMI, optical and coax SPDIF ports, as well as variable-level analog stereo audio outputs.

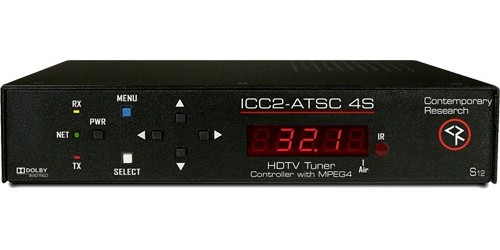

Front Panel:
Display: Red LED Channel Display, dot separated major and minor channel numbers, dot at end indicates Off-Air tuning
IR: IR sensor
Control: Power , Menu, and Select buttons, navigation using Up and Down (Channel Up and Down) buttons
Left and Right (Volume Up and Down) buttons
LEDs: NET (Green) RS-232 RX (Yellow), RS-232 TX (Red)
Back Panel:
Service: USB port (not presently active)
RF In: 1 'F', female, 75 ohm impedance, receives RF feed
RF Out: 1 'F', female, 75 ohm impedance, outputs RF to Air/Cable
Air/Cable: 1 'F', female, 75 ohm impedance, receives RF from RF Out
AV Output: Simultaneous HDMI, RGB/Component, and video out - switchable RGB/Component
Simultaneous HDMI (PCM/AC-3), digital coax and optical (AC-3 or PCM), stereo audio
Video Out: RCA composite video output, 1V p-p at 75 ohm impedance
Component Out: 3 RCA Y, Pr, Pb outputs (1080p/1080i/720p/480p/480i)
Digital Audio S/PDIF: Coax and TOSlink optical output, Dolby 5.1/PCM
Analog Audio Out: Stereo RCA audio, Mono, Stereo, or SAP, variable level
RGBHV Out: RGBHV DB-15 female (1080p/1080i/720p/480p/480i)
HDMI: HDMI receptacle, Type A, HD video and digital audio (in PCM mode), version 1.2 (1080p/1080i/720p/480p), HDCP
RS-232 Control: DB-9 male, RS-232 data link to control display or projector, 1200-115,000 baud
A/C (Air/Cable): 3.5 mm closure output to operate the optional RF-AB RF Switch
IR In: 3.5 mm stereo input for external IR sensor or wired IR (no carrier, discrete codes available)
Power In: 2.1mm coaxial jack (inside center conductor positive)
1 A maximum, 11.5 to 15 VDC, 12 VDC typical
Tuning:
Frequency Range: NTSC, ATSC (8-VSB) and Clear QAM (cable) television 55.25 to 801.25 MHz
DTV Resolution: ATSC/QAM 1080i/720p/480p/480i
Tuning: Off-air 2-69 (NTSC and 8-VSB) and CATV 2-135 (Analog, 64QAM, 256QAM, 8-VSB)
Aspect Ratio: 4:3/16:9 (Digital), 4:3, 16:9, Zoom (Analog channels)
Captioning: DTV and analog, set by program or customized for size, font and display attributes
Lock: Parental option for channels and/or rating
Captioning:
On-Screen: Displays on-screen analog and digital captioning on all video ports
Captioning Data: HDMI, RGB, and Component ports don't have the ability to carry captioning data
The composite video port will carry Line 21 data, but only when tuned to an analog channel
Additional Specs:
Size (WHD): 8.5" [216mm] wide x 1.75" [44mm] height (1.5 RU) x 8.0" [203mm] deep
Weight: 1.94 lbs [890 g]
Enclosure: Steel with black powder coat paint
Mounting: 1 RU Rack mounting for one or two units side-by-side optional (RK1, RK2-EZ)
Certification: ROHS compliant, meets California codes
Included Accessories: PS12-1.5 Switching power supply, 1.5A 12 VDC, compact enclosure fits into power strips, 2.5" H x 2" W x 1" D, RKU, Universal Rack Mount Kit
Warranty: 3 Years
